COLD FORGING

Manufacturing

COLD FORGING

Forging: Forging is the process of deforming metal into a predetermined shape using certain tools and equipment—deformation is accomplished using hot, cold, or even warm forging processes. It is the basic operation in most bolts and screws to give their desired shape. IPS has the capability to develop and forge highly special parts, Bolts/Screws/Studs etc. along with the vast range of standard fasteners.

Cold Forging

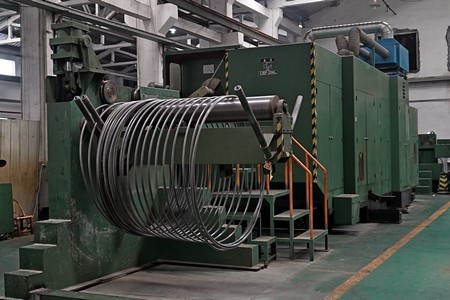

It is the process of forming the shape of a metal piece by external forces in ambient conditions. It is normally done at room temperature or near room temperature. At IPS, we do the cold forging on our fully automatic high speed multi station bolt formers. Our capacity includes a wide range of High Tensile Fasteners.

Product Standard Range Threads Grade
Hex Head Bolts/Screws DIN931/DIN933 & ISO4014/ISO4017 M5 to M24 Half/Thread 10.9
Hexagon Nuts DIN934 & ISO4032 M4 to M24 8 & 10
Hexagon Wrenches DIN911 & ISO2936 1.5 - 19mm HRC 47 min.
Hexagon Wrenches BS2470 1/16" - 3/4" HRC 47 min.
Socket Head Bolts DIN912 & ISO4762 M3 to M24 Half/Full 12.9
Socket Head Bolts BS2470 3/16 to 3/4 Half/Full 12.9
Counter Sunk Socket DIN7991 & ISO10642 M3 to M20 Full 12.9
Button Head/Cap/Screws DIN9427 & ISO7380 M3 to M10 Full Thread 12.9
Set Screw IS6094, DIN916 & ISO4029 M3 to M12 Full Thread 45H
Set Screw BS2470 3/16 to 1/2 Full Thread 45H
Special items: As per Drawing

*M24 & Above, manufactured by hot forging Process
