Socket Head Cap Screw

Products

Socket Head Cap Screw

  • As per DIN912 & ISO4762 for Metric Series and BS2470 for Inch Series
  • Range: Metric Series: M3 to M48
  • Range: Inch Series: 3/16” to 1”
  • M3 to M24 by Cold Forging Process
  • M24 and Above by Hot Forging Process
  • Controlled hex socket for maximum wrenching strength.
  • Uniform socket depth for accurate key fit & higher torque.
  • Knurled head for finger grip fast assembly
  • Smooth fillet radius to withstand head soundness
  • Formed threads with improved root radius provide greater strength to threads.
  • Uniform & uninterrupted grain flow for greater strength.
  • Controlled mechanical properties for higher strength

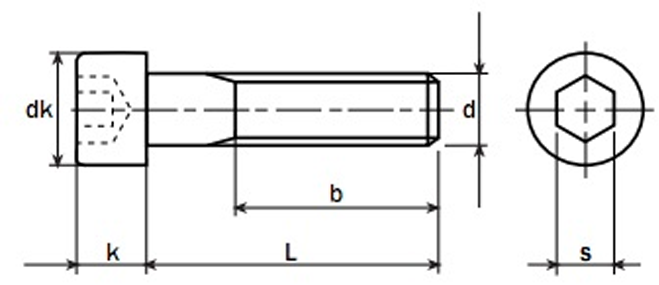

    • Socket Head Cap Screw Dimensions
    Nom. Dia (d) M5 M6 M8 M10 M12 M14 M16 M18 M20
    Thread Pitch 0.80 1.00 1.25 1.50 1.75 2.00 2.00 2.50 2.50
    Thread Length (b) 22 24 28 32 36 40 44 48 52
    dk Max. 8 10 13 16 18 21 24 27 30
    k Max. 5 6 8 10 12 14 16 18 20
    s Nominal 3 4 6 8 10 12 14 14 17
    Nom. Dia (d) M22 M24 M27 M30 M33 M36 M42 M48
    Thread Pitch 2.50 3.00 3.00 3.50 3.50 4.00 4.50 5.00
    Thread Length (b) 56 60 66 72 78 84 96 108
    dk Max. 33 36 40 45 50 54 63 72
    k Max. 22 24 27 30 33 36 42 48
    s Nominal 17 19 19 22 24 27 32 36
    IPS Range of Socket Head(Allen Bolt)
    Product Range Grade Standard Raw Material
    Socket Head Cap Screws M2 to M42 12.9 DIN912 & ISO4726 Alloys Steel
    Socket Head Cap Screws 1/8 to 1" 12.9 BS:2470 Alloys Steel
    Socket Head Cap Screws Special Items As per customer drawings only
